Eachine EV800DM Diversity FPV Goggles
EV800D vs EV800DM Comparison
| EV800D | EV800DM | |
| Weight | 362g without antenna | 320g without antenna |
| DVR | 720*576px | 720*576px |
| Diversity | Yes | Yes |
| Varifocal | NO |
20mm focal length adjustable;
Multi-stop points design for vertical individual user adjust;
For more users with different eyesight
|
| Screen size | 5.0 inch | 3.0 inch |
| Screen resolution | 800*480 | 900*600 |
| Ratio | 16:9, 4:3 | 4:3 |
| Separable Design | Removable screen, can be used as a monitor. | NO |
| Support Tripod | Yes, with 1/4 inch screw hole | NO |
| Glasses Fit | NO | Fit for wear with 140mm*40mm glasses; |
| Battery | 7.4V/1200mAh or 3.7V/2000mAh | 3.7V/2000mAh |
Features:
- Built-in with super HD DVR up to 720*576px resolution
- Diversity RaceBand 40ch Auto-Searching
- Two system (Display/rec0rd duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 speed card to ensure the full frame rec0rding)
- Work friendly with player-OSD, no block on the important flying OSD information;
- Focal length adjustable design;Room for eyeglasses
- HD high brightness 3 inch LCD specially tuned for FPV racing;
- Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with RaceRand;
- Advanced auto-searching function and the working frequency show on screen;
- Built-in 3.7V 2000mAh battery, each full charge offer 2.2 hours working time;
- Wide rang re-charge voltag 5-18V;
- Accept 2S or 3S batteries as back-up power source, to prolong the working time;
- Nice ergonomic design and fit different faces;
- Super-wide visible angle up to 82 degree;
- 92% transparent lens adopted, no distort, no blur on the edge of screen;
- Light weight 320g with 2.2 hr 2000mAh battery, RTF for any scale racing game;
- 3 Inch 900*600px HD high brightness LCD
Description:
- Brand Name : EACHINE
- Item Name : EV800DM
- English Manual：Click here
| Appearance | Dimension: 150*170*80mm Weight: 320g without antenna Belt : three-way adjustable belt |
| Specification | Build in DVR rec0rd up to 720*576px full frame rate video, no frame lost (C10 card required) Riplay in MENU Require C10 card to rec0rd full frame rate |
| Diversity | - 90dB Super sensitiveness in 2pcs RX5808 PRO modules Great performance when two types (Linear and Omni) antennas are used |
| Display | Screen size: 3.0 inch Screen resolution: 900*600(No blur after enlarge by the lens) Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV Ratio : 4:3 View Angle: 140/120 degree(Horizontal/Vertical) |
| Lens | 3x boost of the video to acquire intense feel-in-there video; 92% transparent rate distort if light; |
| Varifocal | 20mm focal length adjustable; Multi stop points design for vertical individual user adjust; For more users with different eyesight |
| Glasses Fit | Fit for wear with glasses; Glasses Fit Size; 140mm*40mm; Focal length need to be reset when wear glasses |
| Battery | Built-in 3.7V/2000mAh battery; Each battery circle offer around 2.2hr working time; 5-20V wide rang recharging voltag rang, typical recharging with 5V/2A Charger : 5V, 2A, DC 2.5mm 2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time. |
Frequencies (5.8GHz, with RaceBand)
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A or FR1 |
5865 MHZ
|
5845 MHZ
|
5825 MHZ
|
5805 MHZ
|
5785 MHZ
|
5765 MHZ
|
5745 MHZ
|
5725 MHZ
|
|
B or FR2
|
5733 MHZ
|
5752 MHZ
|
5771 MHZ
|
5790 MHZ
|
5809 MHZ
|
5828 MHZ
|
5847 MHZ
|
5866 MHZ
|
|
C or FR3
|
5705 MHZ
|
5685 MHZ
|
5665 MHZ
|
5645 MHZ
|
5885 MHZ
|
5905 MHZ
|
5925 MHZ
|
5945 MHZ
|
|
D or FR4
|
5740 MHZ
|
5760 MHZ
|
5780 MHZ
|
5800 MHZ
|
5820 MHZ
|
5840 MHZ
|
5860 MHZ
|
5880 MHZ
|
|
R or FR5
|
5658 MHZ
|
5695 MHZ
|
5732 MHZ
|
5769 MHZ
|
5806 MHZ
|
5843 MHZ
|
5880 MHZ
|
5917 MHZ
|
Package Included :

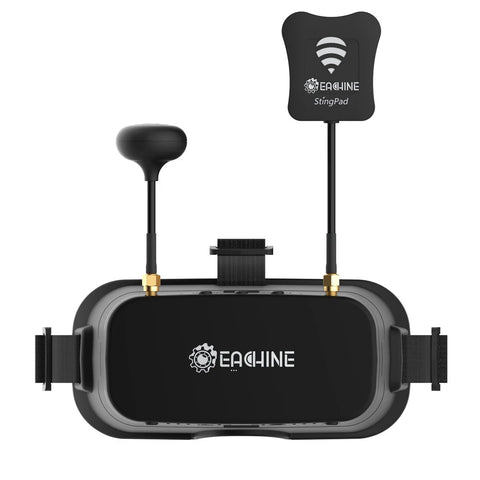

- 1x EV800DM 40CH 5.8G Varifocal FPV Diversity Goggles with DVR
- 1x Clover Antenna
- 1x Panel Antenna
-
1x Battery Charger
- 1x USB Power Charging Cable
- 1x AV In/Out cable
- 1x User Manual
