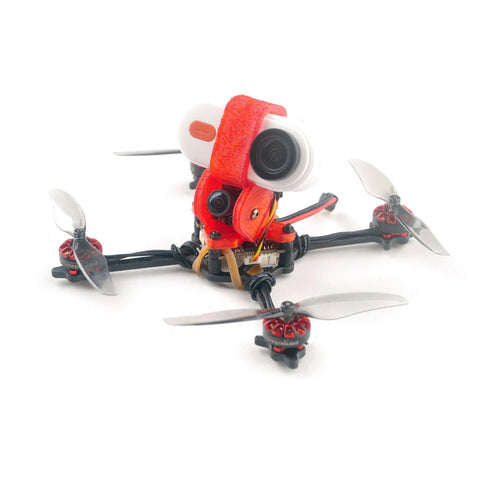

HappyModel Crux3 1S Toothpick 3 Inch Quad FPV Racing Drone BNF ELRS

*For ELRS V3 Radio Controller, please download Crux3 1S ELRS V3 firmware and CLI Dump file from here: Crux3 1S ELRS V3

Features:

40gram 1s brushless Toothpick drone
AIO Flight controller with ELRS Receiver and 5.8G VTX
CADDX ANT 1200TVL Camera
New 1202.5 KV11500 brushless motor
Compatible with CaddxFPV Peanut and Insta360 GO2 ( NOT Included)
Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery

Specifications：

Brand Name: Happymodel
Model: Crux3 1S ELRS
Item Name: 115mm F4 1S Toothpick FPV Racing Drone BNF
Wheelbase: 115mm
Size: 97mmx97mmx35mm (without propellers)
Weight: 40g(without battery)

Motor	Mode: EX1202.5 KV11500 Configu-ration:9N12P Stator Diamter:12mm Stator Length:2.5mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.Len):Φ14mm14.5mm Weight(g):4.4g No.of Cells(Lipo):1S
Propellers	Gemfan 75mm Center Thickness:5mm Prop Diameter:75mm Center Hole diameter:1.5mm Pitch:0.9in
Flight controller	MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Original whoop size compatible Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI ExpressLRS 2.4GHz receiver Built-in 5V 1A BECFlight controller firmware target: CRAZYBEEF4SX1280
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT300
Onboard SPI ExpressLRS 2.4GHz Receiver	Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol to flight controller: CRSF Could bind with All ExpressLRS 2.4GHz TX module , ExpressLRS firmware need 1.0.0 or latest
Onboard 5.8g VTX	Output power: 25mw~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race band Smartaudio ready
Caddx ANT 1200tvl camera	Image Sensor: 1/3" CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 1414mm(with bracket to 1919mm) Wide Power Input: DC 3.7-18V Work Temperature: -20℃~+60℃ Weight: 2g (N.W.)
