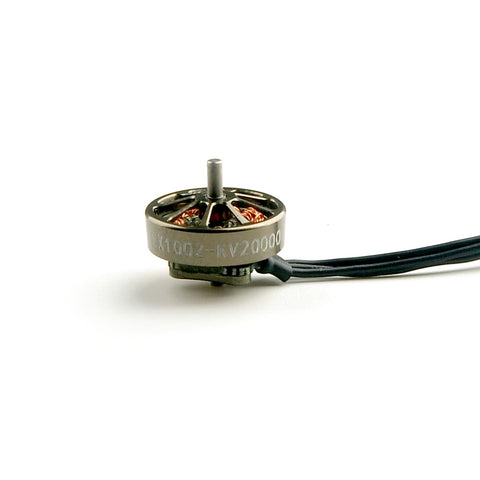

HappyModel EX1002 Brushless Motor 20000KV
Specifications:
- Brand name: Happymodel
- Item name: EX1002 brushless motor
- KV: 20000KV
- Shaft Diameter: 1.5mm
- Configuration: 9N12P
- Stator Diameter: 10mm
- Stator Length: 2mm
- Motor Dimension(Dia.*Len): Φ13.5mm*12.5mm
- Terminals: JST1.25mm
- No. of Cells(Lipo): 20000KV compatible with only 1S lipo
- Wire length(exclude connector):40mm
- Weight: 2.45g
- Compatible for Mobula7 1S version , Mobula7 HD 1S version, Moblite7 HDZERO, and Moblite7 avatar.
Happymodel EX1002 KV20000 Brushless motor Bench data | ||||||||||
No-load voltage | No-load current |
No-load Speed | KV | Voltage (v) |
Current (A) |
Thrust (g) |
Efficiency (g/w) |
Power (w) |
Propeller | |
2 | 0.5 | 41820 | 20910.0 | 3.7 | 1.01 | 12.9 | 3.452 | 3.737 | Gemfan 2015-2 2-blade propeller |
|
3.7 | 2.01 | 23.3 | 3.133 | 7.437 | ||||||
3.7 | 3 | 32.1 | 2.892 | 11.1 | ||||||
3.7 | 4 | 40.8 | 2.757 | 14.8 | ||||||
3.7 | 5 | 48.9 | 2.643 | 18.5 | ||||||
3.7 | 5.99 | 55.4 | 2.500 | 22.163 |
