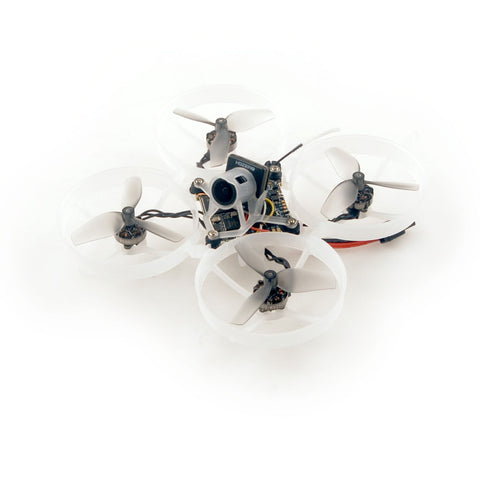

HappyModel Mobula7 Freestyle HDZero 75mm TinyWhoop ELRS
Description:
Happymodel Mobula7 Freestyle BNF is a 75mm ultra light BNF using the HDZero AIO5 designed for freestyle whooping. It is only 24.5 grams. High Speed RS0802 KV25000 brushless motors with HQPROP 1.6inch Tri-blades ultra light propellers, got a better freestyle experience.
Specifications
- Weight: 24.5g
- Recommended Battery: 1S 450mah/550mah/650mah (A30 or BT2.0)
- Propeller Size: 40mm
AIO flight controller
- MCU: STM32F411 (100MHz, 512K Flash)
- Gyro: ICM42688P
- On board voltage and amperage meters
- Built-in 5A(each) BLHeli_S 4-in-1 ESC
- Bluejay ESC firmware pre-installed
- Built-in 5.8G HDZero VTX
- Built-in SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0
- Built-in 5V 1A BEC
- Board size:28.5×28.5mm with a 25.5×25.5 mounting hole size
- Betaflight firmware: CRAZYBEEF4SX1280 4.4.2 out of factory
- HDZero Lux Camera
- Sensor size: 1/2 inch
- Resolution: 720p60 4:3 and 16:9
- FOV: D:155° H:126° V:94°(4:3)
- FOV: D:145° H:126° V:70°(16:9)
- WDR
Motors
- Model:RS0802
- Kv:25000
- Stator diameter: 8mm
- Stator length:2mm
- Shaft diameter: Φ1.5mm
- Weight:2.0g
Included
- 1x Happymodel Mobula7 Freestyle BNF 1S ELRS
- 1x Spare canopy
- 1x Spare propeller(set)
- 1x Screw driver
- 1x propeller disassemble tool
Notes:
If the betaflight firmware is 4.5.1 and you got failsafe when Core temperature is overheat. Here is the Solution to fix the problem, thanks Ryan Quellet
Steps:
Connect to betaflight configurator
Then copy the following command to CLI command:
cpu_overclock = 108MHZ
save
