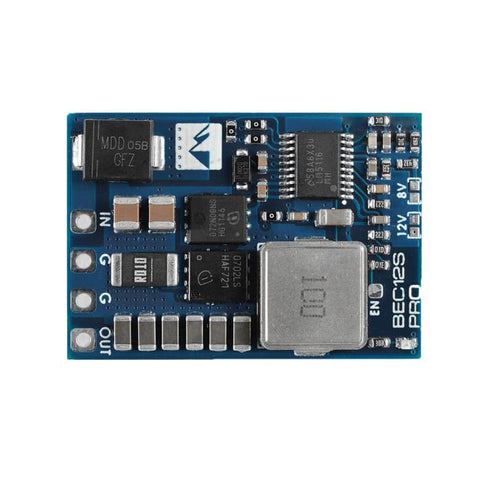

Matek BEC12S-PRO 9-55V INPUT 5V/8V/12V-5A OUTPUT
The MATEKSYS 12S Pro BEC features a wide 9-55V Operating Input Range, 3x Output Voltage Options 5V/8V/12V and Supports continuous output current of up to 5A, peak current of 9A. This voltage regulator also features a synchronous switching step-down (buck) regulator, thermal Shutdown, output Short-circuit tolerance (2 seconds), overcurrent protection & self-recovery and much more!
SPECIFICATIONS
- Wide 9V to 55V Operating Input Range with TVS protection
- 3x Output voltage options, 5.2V, 8V or 12V. Default 5.2V.
- Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
- Supports continuous output current of up to 5A, peak current of 9A.
- Output ripple 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
- Standby current: 5~10mA
- No reverse-input voltage protection
- Thermal Shutdown
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
- Dropout voltage: 2V (Input>=14V is required for stable 12V output)
- Pins distance: 3.81mm
- Size & Weight: 35 x 24 x 5.5mm, 5g
INCLUDES
-
1x Matek 12S Pro BEC 12S 9-55V Input 5V/8V/12V-5A Output
