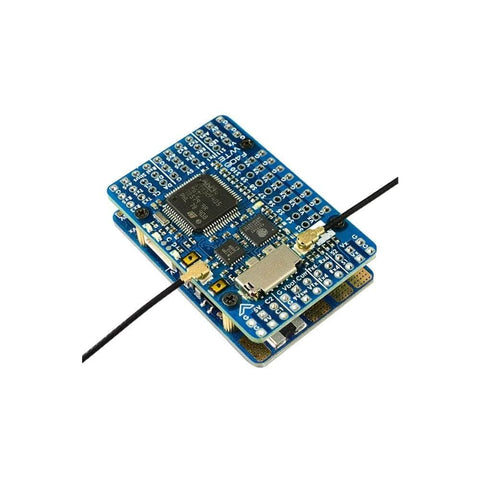

Matek F405-WTE Wing Flight Controller Integrated ELRS 2.4G Receiver

Matek has done it again with another top of the line Matek F405-WTE Wing Flight Controller w/ Integrated ESP32 & ELRS 2.4G RX . This time with an integrated ESP32 module that can be used as an ELRS Receiver of wifi telemetry! You won't find any better quality in the wing game.

Specifications

• Input Voltage 2-6S
• MCU: STM32F405RGT6, 168MHz , 1MB Flash
• IMU: ICM42688-P
• Baro: SPL06-001
• OSD: AT7456E
• Blackbox: MicroSD card slot
• ESP WiFi Telemetry: Yes(MAVLink, 14dBm)
• ExpressLRS 2.4G Receiver: Yes(CRSF protocol, Telemetry 12dBm)
• UARTs: 6 + 1x Softserial_Tx option(INAV)
• PWM outputs: 12
• I2C: Yes
• ADC: 4 (VBAT, Current, RSSI, Airspeed)
• Dual Camera Inputs Switch: Yes
• FC Firmware: ArduPilot: MatekF405-TE, INAV: MATEKF405TE_SD (not available in INAV configurator 4.x)
• Mounting Pattern: 25x25mm M2
• Dimensions: 44x29x12.7mm
• Weight: 22g

BEC Specifications

BEC 5V output

• Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
• Continuous current: 2 Amps, Max.3A

BEC 9V /12V output

• Designed for Video Transmitter, Camera, Gimbal ect.
• Continuous current: 2 Amps, Max.3A
• 12V option with Jumper pad
• for stable 9V/12V output, input voltage should > output voltage +1V

BEC Vx output

• Designed for Servos
• Voltage adjustable, 5V Default, 6V or 7.2V via jumper
• Continuous current: 8 Amps, Max.10A
• for stable Vx output, input voltage should > Vx voltage +1V

BEC 3.3V output

• Designed for Baro / Compass module and external 3.3V peripherals
• Linear Regulator
• Continuous current: 200mA

Includes

• 1x Matek F405-WTE Wing Flight Controller w/ Integrated ESP32 & RX
• 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
• 2x IPEX-MHF1 2.4G Antennas
• 1x Rubycon ZLH 35V 470uF capacitor
• 1x Set Dupont 2.54 pins
